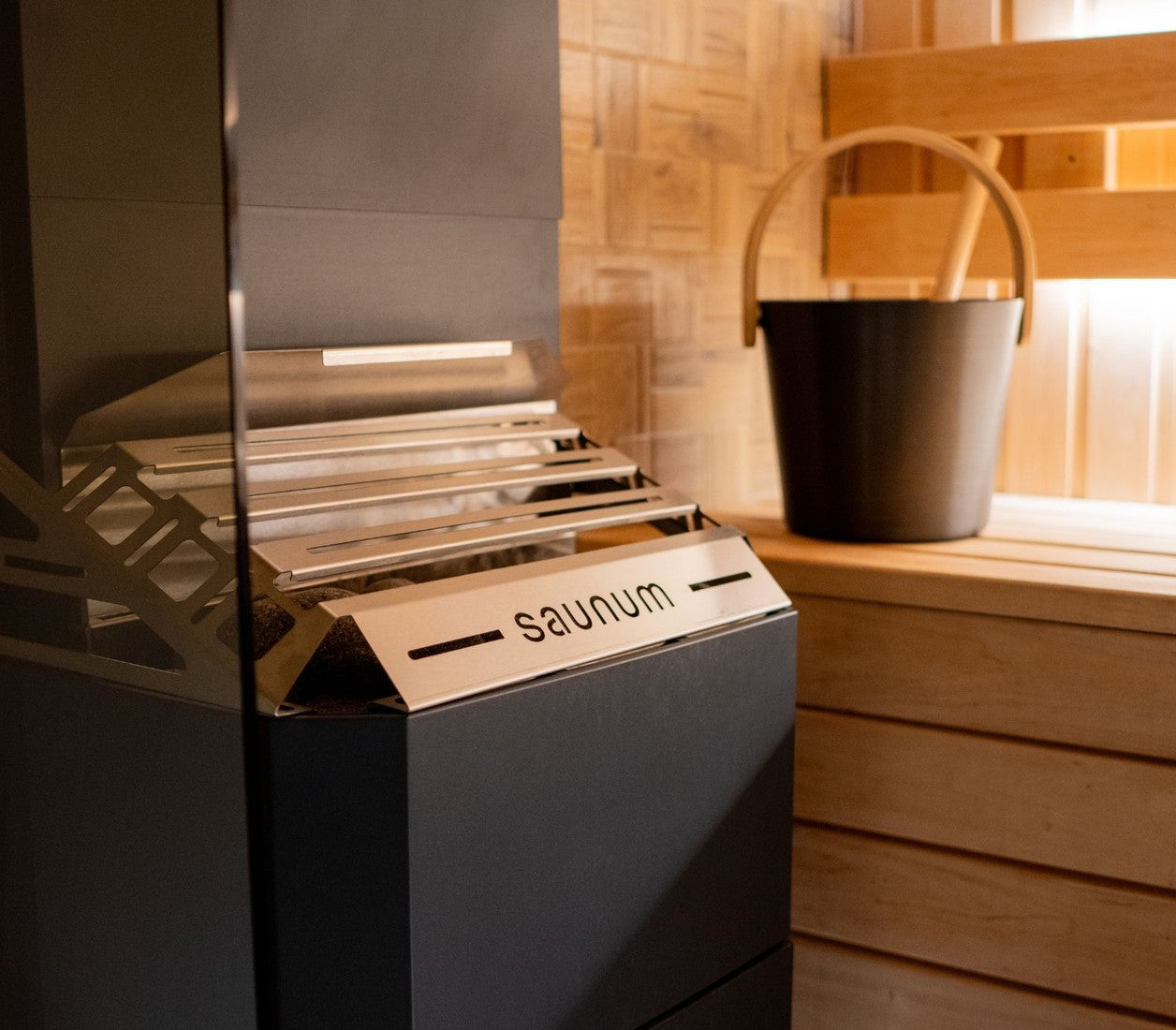

Saunum Air 5 Sauna Heater Package
Overview
Saunum’s patented air blending system draws heat and steam from near the ceiling, mixes it with cooler, more oxygenated air near the floor, then directs more comfortable, breathable steam throughout the room. This equalizes room temperature by more than 60% for a significantly better sauna experience. You’ll enjoy longer, more satisfying sauna sessions with more intense sweating. All sauna bathers have experienced the same issue – extreme variance in temperature and oxygen from the ceiling to the floor. The temperature at the ceiling can often exceed 200°F, while at the floor it will be under 100°F, causing your feet to feel uncomfortably cool and your head to be too hot. The temperature and oxygen level should be more consistent throughout. This revolutionary sauna heater includes an ingenious climate equalizing system that more evenly balances the temperature and oxygen levels throughout your sauna for softer, more breathable air. Saunum is all about the air! • The AIR we heat • The AIR we feel • The AIR we breathe Enrich the air with Himalayan salt ions The ions released from the patented Himalayan salt feature are propelled into the sauna to maximize their health benefits. Salt aerosol has long been used for its benefits as a decongestant, inflammation reduction, and possesses anti-microbial properties. Add another dimension to your sauna with aromatherapy Breathe deep, relax, let the room fill with heat and steam, and clear away your tension with the invigorating and awakening scents of Saunum’s available aromatherapy option. Experience 6 distinct styles of sauna bathing Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences. • Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate a traditional banya. • Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense, consistent heat. • Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna. • Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal hot yoga sessions. • Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber creating a true salt sauna. • Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.
Key Features
- Air 5 Sauna Heater Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
- European Design – With an elegant stainless steel finish, Saunum combines Scandinavian design and quality materials.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 130 pound stone capacity.
- Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
- Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from 106 to 212 cu. ft.
- AirIQ Wi-Fi Control Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
- Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
- Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed

About Saunum
Even heat, floor to ceiling
Saunum's award-winning Climate Equalizer technology actively circulates heat and humidity throughout the room, eliminating the harsh temperature gap between floor and ceiling found in conventional saunas. The result is a gentler, more even, more breathable heat — engineered and built in Estonia.
Every Detail
Specifications & Details
Specifications
Model: AIR 5 SSB PKG
Heat Equalizing System
Model: AIR 5
Certification/Global Safety Rating: UL (Underwriters Laboratories)
Heat/Steam Equalizer Module: 3-Speeds, Whisper-Quiet Operation
Ceiling Hot Air Intake: 17.72" x 4" (450.09 x 101.6 mm)
Cool Air Intake Type: Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor
Cool Air Intake Size: 2" x 2.75" (50.8 x 69.85 mm)
Blended Air Output: 4.31" x 14.13" (109.47 x 358.90 mm)
Himalayan Salt and Aroma Tray Type: Removable, Slotted
Himalayan Salt and Aroma Tray Size: 16.5" x 4.5" (419.1 x 111.76 mm)
Sauna Heater System
Model: AIR 5
Certification/Global Safety Rating: UL (Underwriters Laboratories)
Heater Body Style: Stainless Steel
Heating Elements: Incoloy (Stainless Steel)
Heating Element Protection: Air Tunnels, Slotted Stainless Steel, Three
Room Size: 106 - 212 cu. ft. (3-6 Cubic Meters)
Wattage Rating: 4950
Operating Voltage: 240 VAC
Phase: Single
Amperage: 20.6
Weight: 147 lbs (67 kg)
Shipping Weight with Stones: 279 lbs (126.6 kg)
Width: 18.3" (465 mm)
Depth: 12.4" (315 mm)
Height: 75.4" - 95" (1915-2420 mm)
Minimum Ceiling Height: 73" (1850 mm)
Stone Capacity: 130 lbs (60 kg)
Stone Size: 2" to 4" (5-10 cm)
Circuit Breaker: See Installation and Operation Manual
Wire Size to Power Unit: (2) #10 + N + G
Wire Size - Power Unit to Elements: 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)
Wire Size - Power Unit to Heat Equalizer: 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)
Room Temperature Sensor: Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
Display Panel
Model: AIRIQ WI-FI
Certification/Global Safety Rating: UL (Underwriters Laboratories)
Type: Digital, Soft-Touch
Response: Tactile with Haptic Feedback Technology
Language Selection: 16-Languages
Wi-Fi Capability: Wi-Fi, App-Based Updates, and Operation
Notifications: Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features: Admin, Screen Lock, Door Sensor, and Overheat Protection
Color: Nordic Black
Heat Equalizing Control: 3-Speed Adjustability
Width: 3.3" (83.82 mm)
Depth: .8" (20.32 mm)
Height: 4.1" (104.14 mm)
IP Rating: IP20
Minimum Temperature Setting: 104-Degrees Fahrenheit (40-Celcius)
Maximum Temperature Setting: 194-Degrees Fahrenheit (90-Celcius)
Duration Timer: 1 - 6 Hours
Display Panel Cable: 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
Door Sensor and Cable Assembly: 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe: 1" Long and .24" Diameter (25 x 6 mm)
Operating Temperature Range: -4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
Programmability: Weekly Scheduling with Three Programmable Sessions
Temperature Settings: Fahrenheit or Celsius
Region Settings: North American and European Versions
Room Temperature Sensor: Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
What's Included
- Air 5 Sauna Heater Stainless Steel Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)

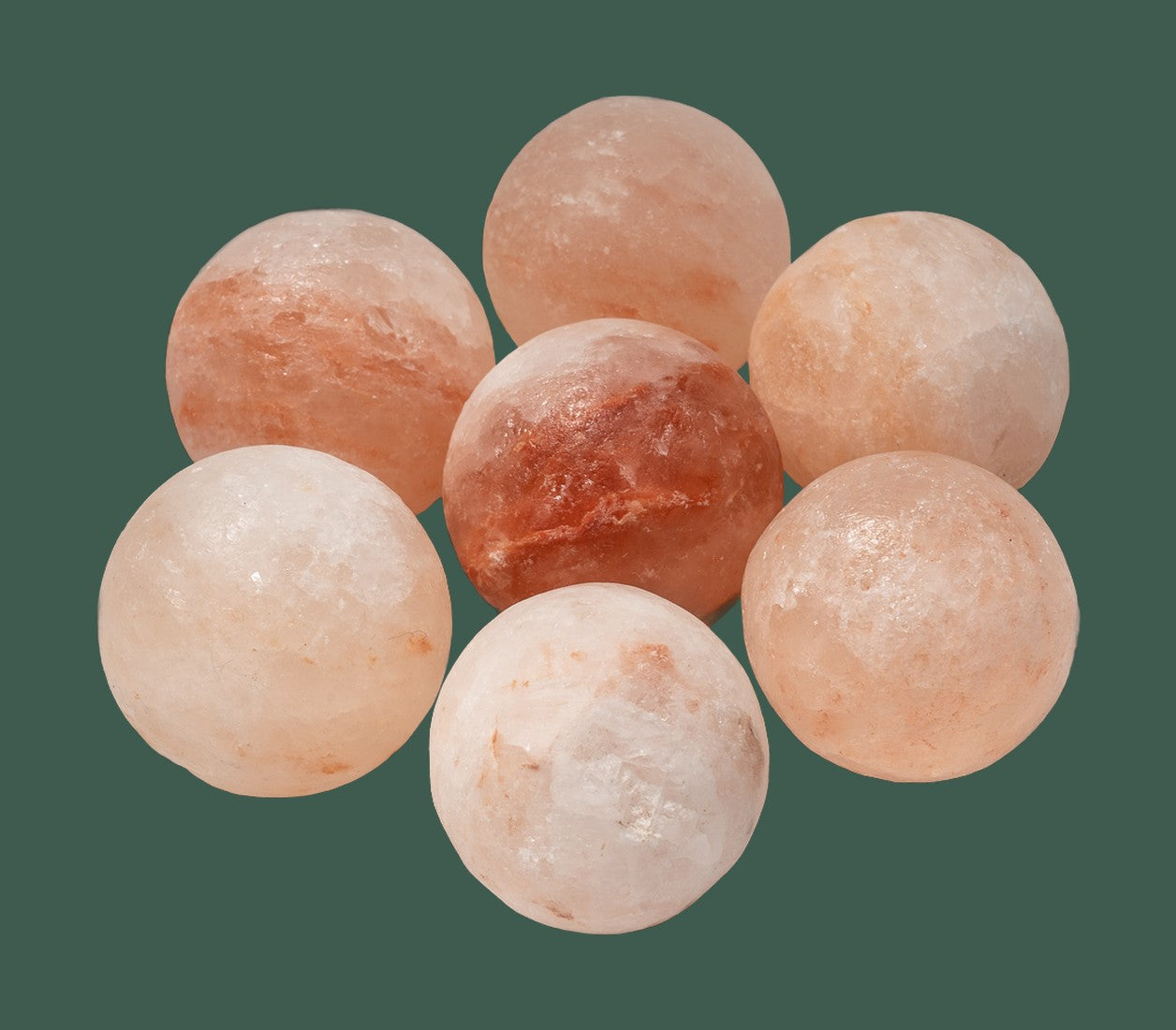

- Himalayan Salt Spheres (7)
- Hot Air Intake Cap
- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5' (152.4 cm)
- Heat Equalizer Electrical Cable, 5' (152.4 cm)
- Room Temperature Sensor & Cable, 9.5' (289.56 cm)
- Door Sensor & Cable Assembly, 9.83' (299.62 cm)
- IQAir Display Panel Cable, 16' (487.68 cm)
- Quick Install Guide
- Installation and Operation Manual
- Limited Warranty
- AirIQ Wi-Fi Control Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
- Wall Mounting Plate and Fasteners
- Power Unit
- Door Sensor Magnet
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
- Sauna Stones 132 lbs of 2" to 4" (5-10 cm) Round Sauna Stones
Sauna Compatibility & Sizing
Designed for sauna rooms from 106–212 cubic feet. Operates on 240V single-phase.
The Saunum Air 5 Sauna Heater Package suits traditional sauna rooms, including SaunaLife, Dundalk LeisureCraft, and ThermaSol barrel, cube, and cabin saunas — choose the model whose cubic-foot rating matches your room volume. Measure length × width × height of your sauna interior to find the right kW.
Shipping & Warranty
Shipping: Ships free via freight carrier with curbside delivery to the contiguous U.S. Most orders dispatch within a few business days.
Warranty: Manufacturer's limited warranty included. Backed by Sauna Co. customer support.
Many heaters require a compatible control unit and sauna stones, sold separately — contact our specialists for the right pairing.
